|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Price:||Customized Product, Quoted Case By Case|
|Packaging Details:||Seaworthy packing|
|Delivery Time:||30-48 weeks|
|Payment Terms:||T/T, L/C|
|Supply Ability:||20 sets per year|
|Material:||Stainless Steel, Carbon Steel||Function:||Treatment Of Toxic, Harmful And Dangerous Waste Liquid|
|Arrangement:||Horizontal Or Vertical||Customised:||Available|
|Standard / Code:||GB, API,||Available Service:||Design, Supply, Supervision On Installation, Commissioning & Training|
regenerative thermal oxidizer,
industrial waste incinerator
SMDERI have been involved in research & development on decontamination of toxic & harmful waste gas and liquid over decades of years. Over 200 sets of various types of thermal oxidizers have been completed on EP / EPC basis.
Types of Thermal Oxidizer:

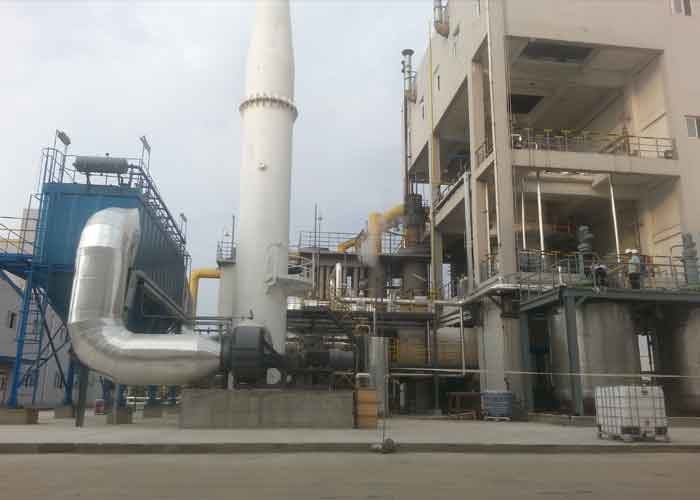

Waste Water Thermal Oxidizer (Incinerator)
Method of treatment: Thermal Oxidization
Applications: Treatment of various types of waste water generated from chemical plants, refineries and other facilities.
Waste Water Thermal Oxidizer is to handle the organic compositions contained in waste liquid by means of thermal oxidization, which converts the compositions of C and H contained in the organics into the pollution-free compositions: CO2 and H2O. The temperature of incineration shall be controlled between 950-1100℃. A waste heat boiler is arranged for the incinerated flue gas to recover steam. In order to save fuel consumption, the air to be combusted is usually preheated up to 300-400℃.
The waste water is atomized and introduced into the combustion chamber, where the liquid drop is atomized between 50μ~100μ. Based on the characteristic of waste liquid, the compressed air atomization, steam atomization or mechanical atomization shall be selected.
Due to the low heat value of waste water, the arrangement of chamber, waste water spray gun and fuel spray nozzle shall be specially considered for large stream of waste water thermal oxidizer to make sure that the sprayed waste water is promptly vaporized and combusted inside the chamber and the good temperature field is established.
According to different heat value and composition of waste water, the targeted measures are applied to ensure the standard emission of NOx, by means of waste water graded, air graded and SNCR or SCR denitrification device set up.
