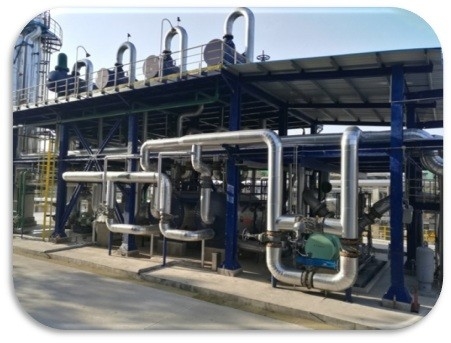

Energy Saving Industrial Rankine Cycle Power Plant For Waste Hot Water

Energy Saving Industrial Rankine Cycle Power Plant For Waste Hot Water

Energy Saving Industrial Rankine Cycle Power Plant For Waste Hot Water

Product Details:

Place of Origin: China
Brand Name: QIYAO
Certification: ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD1800 - 2200 PER KW
Packaging Details: seaworthy packing
Delivery Time: 120 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per yeat
Contact Now
Detailed Product Description
Material: Stainless Steel Applications: Cement Plant, Petrochemical Plant, Etc.
Rated Power: 1 MW - 10 MW Skid Equipment: Available
Customized: Available Condensation: Air Cooling Or Water Cooling
High Light:

rankine cycle power plant


orc organic rankine cycle

Principle of ORC system

  • The low boiling point organic working fluid makes heat exchange with the heat source through evaporator, then absorbs heat and is evaporated to high temperature & high pressure steam.
  • The high temperature & high pressure steam drives the turbine expander & generator set for electric power generation.
  • The temperature and pressure of organic steam is decreased after work.
  • The organic steam with low temperature & pressure flows into the cooling system to be condensed to fluid.
  • The organic working fluid is pressurized by the fluid pump for next cycle.

ORC system waste heat recovery from hot water


In many industries, a lot of waste hot water will be generated from the processes. Part of hot water can be used for other processes which need to be warmed or heated. However there is still a tremendous amount of hot water to be discharged directly.

An ORC system are normally arranged to recover the waste heat containing in hot water to generate electric power, which contributes to energy-saving and environmental protection.


Applicable temperature of hot water: 90°C-150°C

Applicable flow rate of hot water: 300t/h and above

Rated power capacity: 0.5MW – 10MW @ORC unit


Sketch – Process Flow:

Energy Saving Industrial Rankine Cycle Power Plant For Waste Hot Water


Typical Specifications:


Model    HW-500L HW-1000L HW-1500L HW-1000H HW-2000H HW-3000H HW-5000H HW-10000H

Hot water temp(in)

95 95 95 130 130 130 150 150

Hot water flow rate

t/h 300 570 1000 250 475 680 1200 2400

Hot water temp(out)















Power capacity

kw 435 870 1280 890 1740 2650 4400 8600

Power consumption

% <10





<8 <8 <8 <8 <7

Power efficiency

% 5-7 5-7 5-77-12 7-12 7-12 7-12 9-16 9-16

Rated power capacity

kw 500 1000 1500 1000 2000 3000 5000 10000
