| Place of Origin: | China |
| Brand Name: | QIYAO |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Customized Product, Quoted Case By Case |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 60 days after receipt of L/C or T/T |
| Supply Ability: | 20 sets per month |
| Features: | Integrated With Ignition Burner, Start-up Burner & Process Burner As A Whole | Function: | Completely Mix & Atomize To Realize Full Combustion Under High Temperature For Syngas Production |
|---|---|---|---|
| Application: | Coal Chemical Industry | Packing: | Seaworthy Packing |
| Service: | Design, Engineering, Manufacturing, Supply With Technical Service | ||
| High Light: | industrial coal burners,pulverised coal burner |
||

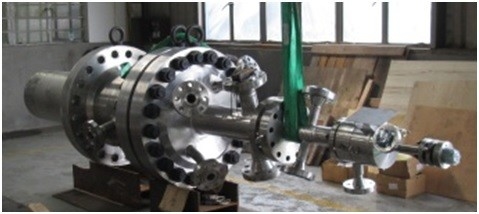

Combined Burner for pulverized coal gasifier / Pulverized Coal Gasification Unit
This Combined Burner, combining the ignition burner and coal burner as a whole, is installed on the top of a top-injected gasifier to realize the ignition, feed and operation efficiently & steadily. It completely mixes and atomizes the oxygen-steam mixture and pulverized coal at the outlet end of the combined burner, then sends the combination to the chamber of the gasifier for combustion under the temperature of 1450-1650ºC and the pressure of 4.5Mpa to generate the synthetic gas mainly composed of H2 and CO.
Advantages
The ignition burner, start-up burner, process burner are integrated as a whole, which enables the burner free of replacement during start-up process.
Equipped with the integrated functions of flame detection, on-line video monitoring and temperature acquisition.
Reliable and steady Ignition function, which can be ignited repeatedly with higher success rate over 90%.
Complete combustion, low fuel consumption.
Higher content of valuable species of syngas generated by the Combined Burner.
Good slagging performance, small heat loss at the wall surface.
Be used for the top-injected pulverized coal gasifier.
