Combination Elevated Ground Flare System Safety Knock Out Drum Flare System

Combination Elevated Ground Flare System Safety Knock Out Drum Flare System

    • Combination Elevated Ground Flare System Safety Knock Out Drum Flare System
    • Combination Elevated Ground Flare System Safety Knock Out Drum Flare System
  • Combination Elevated Ground Flare System Safety Knock Out Drum Flare System

    Product Details:

    Place of Origin: China
    Brand Name: QIYAO
    Certification: ISO, ASME, API

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Customized Product, Quoted Case By Case
    Packaging Details: Seaworthy Packing
    Delivery Time: 36 - 48 weeks
    Payment Terms: T/T, L/C
    Supply Ability: over 20 sets per year
    Contact Now
    Detailed Product Description
    Material: Stainless Steel, Carbon Steel Funtions: Safety Measurs Under Emergency Conditions And Friendly To Environment
    Applications: Oil & Gas, Refinery, Petrochemical Industries Available Service: Design, Supply, Site Supervision On Erection, Commissioning, Training.
    Category: Elevated / Ground Flare Tip: Air Assistant, Air Force Draft, Sonic, Etc.
    Projects Completed: Over 400 Sets Packing: Seaworthy Packing
    High Light:

    open flare system

    ,

    flare combustion systems

    Combination Elevated Ground Flare System Safety Knock Out Drum Flare System



    Flare System is to handle the discharged combustible gas under the conditions of normal operation, start-up, shut-down and emergencies, which ensure the gas to be flared out instantaneously, safely and reliably and to meet the demand of environmental protection.



    Flare System is a kind of safety equipment comprised of pipeline, knock out device, fire retardant equipment, flare burner, ignition system, flare riser and other components.



    Flare Categories:

    * Based on the vent gas media’s physical parameters (mainly for toxicity of the vent gas media), discharge pressure, flow rate and so on, the flare shall be divided into two categories – elevated flare and ground flare.



    * The elevated flare, based on the support way, shall be divided into self-supported flare, inhaul supported flare and derrick supported flare. The derrick supported flare, based on types of the riser to be fixed, shall be divided into fixed derrick supported flare, demountable derrick supported flare.



    * The ground flare, based on vent gas treatment capacity, shall be divided into enclosed ground flare and open ground flare.



    * Based on structure of flare burner, the flare shall be divided into steam-assist flare, forced draft assist flare, defused flare, LHV flare, multi-hole collision flare, sonic flare, etc.



    Options of flare types

    Elevated flare Ground flare

    ▽ Media attribute: unlimited



    ▽ Industry: unlimited

    ▽ Capacity: unlimited

    ▽ Media attribute: The media which is no extremely harmful.

    ▽ Industry: mainly focus on chemical field

    ▽Capacity: up to 150t/h for enclosed ground flare and unlimited for open flare

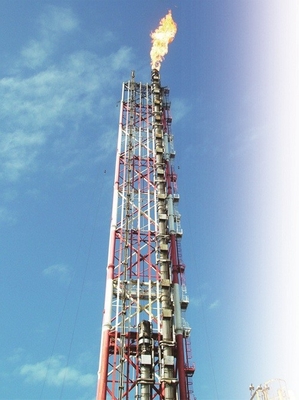

    Options of support way for elevated flare system:

    Self-supported Inhaul Derrick supported
    Fixed flare Demountable flare

    ▽Industry: Natural gas processing plant



    ▽Capacity: small

    ▽Height: not higher than 20m









    ▽Capacity: small

    ▽Height: up to 40m.

    ▽Industry: refinery, coal-chemical, LNG, off-shore, etc.

    ▽Capacity: large

    ▽Height: 40-160m

    ▽Application: The devices matching up the flare system need “same-time start-up & shut-down”

    ▽Industry: refinery, coal-chemical, LNG, off-shore, etc.

    ▽Capacity: large

    ▽Height: 40-160m

    ▽Application: The devices matching up multi sets of flare system can’t be “same-time start-up & shut-down”, need to reserve extra flare system for expansion and save land investment.







    Options of ground flare system

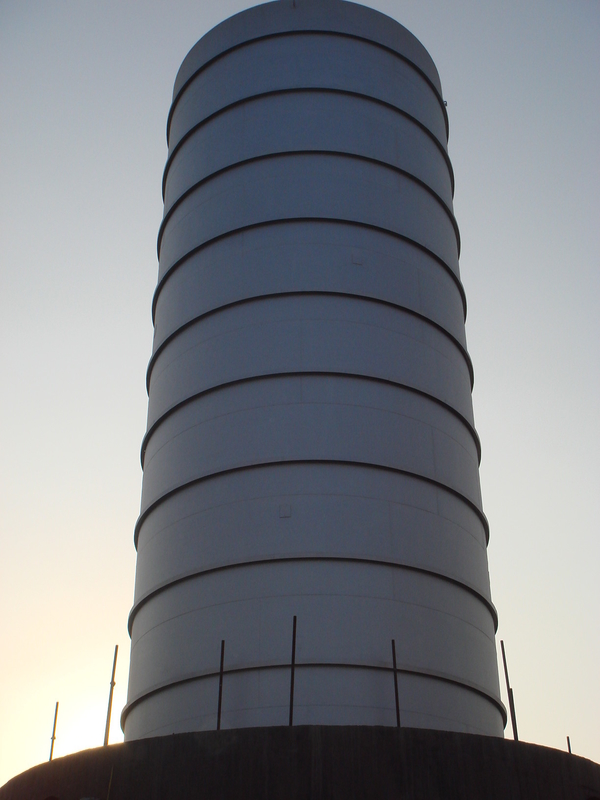

    Enclosed ground flare system Open ground flare system

    ▽ Media attribute: toxic flare gas, but not extremely or highly harmful

    ▽ Industry: focus on chemical industry

    ▽Capacity: not exceed 150t/h for single stack

    ▽Discharge pressure: up to 10kpag within BL (subject to the media)

    ▽Capacity: unlimited



    ▽Discharge pressure: up to 80kpag within BL (subject to the media)





    Options of flare burner



    Steam assist type Forced draft type Diffused type LHV type Multi-hole collision type Sonic type

    Industry:

    Unlimited

    Media:

    Heavy Hydrocarbon

    Discharge pressure: lower, need assist for smokeless combustion

    ▽Utility: Steam available

    Industry:

    Unlimited

    Media: Heavy Hydrocarbon

    Discharge pressure: lower, need assist for smokeless combustion

    Utility: Non-steam

    Location: applicable for cold area.

    Industry :

    Coal chemical







    Media: LHV or hard-combustible media like sour gas or ammonia

    Industry:

    Natural gas

    Media: Light hydrocarbon composition

    Media:

    Off-shore platform





    Discharge pressure: Higher

    Defect:

    Noisy





     Working principle / flow process

    Combination of Ground Flare and Elevated Flare:

    l Ground flare is to handle the discharged combustible gas under the conditions of star-up, shut-down and normal operation. Elevated flare is to handle large stream of discharged combustible gas under emergencies.

    l The combination of ground flare and elevated flare completely solved the small flow smoldering problem happened to large diameter elevated flare, and the environmental problem happened to the elevated flare like light pollution and noise, etc., under normal daily operation.





    Combination Elevated Ground Flare System Safety Knock Out Drum Flare System







    Advantages

    1. Use international engineering software like FLARESIM, FLARENET, FLUENT, etc.;

    2. Own combustion test platform to simulate combustion conditions based on various types of flare gas;

    3. Own numbers of patent technologies and know-how;

    4. Have professional engineering design qualification;

    5. Have high-qualified engineering design team & research and development team;

    6. Have plentiful and comprehensive experiences of engineering construction;

    7. Have professional & high efficient after-sale service system.



    Typical Project

    22,000,000T/y Refinery Project at CNOOC Huizhou Refinery

    Phase #1 - 10,000,000T/y Refinery Project: The flare system consists of HP flare (DN1600), LP flare (DN1600) and Sour gas flare (DN500), and a reservation for DN1600 flare riser. The height of flare system: 150m.

    Phase #2 – 12,000,000T/y Refinery Project: Based on the reserved space of phase #1 for DN1600 flare riser and the optimized design of system, SMDERI took full advantage of “on-line assembly & system expansion” of the demountable common derrick flare to realize the reconstruction & expansion of phase #1 flare system and reach the target of multi-risers being set on a common derrick. For the best utilization of land, SMDERI provided his technical support so that the land investment was saved.

    The flare gas recovery system was equipped with a 20,000M3 Gas Holder, 2 units of 600,000M3 screw compressors and 2 units of 300,000M3 screw compressors.



    40,000,000T/y Refining & Chemical Integration Project, at Zhejiang Petrochemical Co., Ltd.

    4 sets of Open Ground Flare System shall be arranged for Phase #1 of the project:

    Ethylene Ground Flare: 1931.8t/h, fence – 155*136m H15m, burner – 1164 units

    Chemical Ground Flare: 1958.9t/h, fence – 166*105m H15m, burner – 1017 units

    PX Ground Flare: 2144t/h, fence – 78*117*145m H15m, burner – 775 units

    Styrene Ground Flare: 2369t/h, fence – 145*110m, H15m, burner – 901 units





    Typical Clients

    Client Project Reference Data
    Zhejiang Petrochemical Co., Ltd. Ground Flare System for 40,000,000T/y Refining & Chemical Integration Project Phase #1 4 sets of Open Ground Flare System
    Zhongan Allied Coal Chemical Co., Ltd. Coal-to-methanol and Olefin Conversion Project

    Demountable flare:

    2*DN1800+DN1200+DN600+DN450

    H150m

    CNOOC Huizhou Refinery 22,000,000T/y Refining Project

    Demountable flare:

    2*DN1300+DN400, H140m

    PKOP Chimkent Refinery, Kazakhstan Refining Upgrade Project

    Demountable elevated flare:

    2*DN1300+DN400, H140m

    Sinopec-Mitsui, Shanghai 400,000T/y Phenol Acetone Unit 2 sets of Enclosed Ground Flare System
    China Shenhua Coal-Oil Chemical Co., Ltd., Xinjiang Coal Chemical Corp. 680,000T/y New Coal-based Material Project

    Fixed Elevated Flare:

    2*DN1800+DN800+2*DN500, H150m

    Sinochem Quanzhou Petrochemical Co., Ltd. 12,000,000T/y Refining Project

    Fixed Elevated Flare:

    DN1200+DN1600+DN700, H140m



    Patent Technology:

    l Demountable & common derrick elevated flare and its assembly & disassembly system (Utility Model Patent No.ZL200620048466.X)

    l The Assembly & disassembly system of demountable & common derrick elevated flare and its method of assembly & disassembly (Invention Patent No.ZL200610119032.9)

    l Staged discharge combustion system for combustible waste gas (Utility Patent No.ZL200620048087.0)

    l Staged discharge combustion system for combustible waste gas and its method of usage method (Invention Patent No.ZL200610118674.7)

    l Steam-assist flare burner (Invention Patent No.ZL200610118675.1)

    l Water seal structure for flare system (Invention Patent No.ZL200810041594.5)

    l Open ground flare (Utility Model Patent No.ZL201020529360.8)

    l Multi-side demountable & common derrick elevated flare (Utility Model Patent No.ZL201120233838.7)

    l New large stream of enclosed ground flare (Utility Model Patent No.ZL201120227204.0)









    Combination Elevated Ground Flare System Safety Knock Out Drum Flare System

    Combination Elevated Ground Flare System Safety Knock Out Drum Flare System

    Combination Elevated Ground Flare System Safety Knock Out Drum Flare System

    Combination Elevated Ground Flare System Safety Knock Out Drum Flare System
