Place of Origin: | China |
Brand Name: | QIYAO |
Certification: | ISO |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Customized Product, Quoted Case By Case |
Packaging Details: | Seaworthy packing |
Delivery Time: | 30 weeks subject project |
Payment Terms: | T/T, L/C |
Supply Ability: | 20 sets per year |
Material: | Stainless Steel, Carbon Steel | Structure: | Vertical Or Horizontal As Working Conditions |
---|---|---|---|
Function: | Decontamination Of Toxic & Harmful Gas Or Liquid | Application: | Refineries, Petrochemical, Chemical, Etc. |
Method Of Treatment: | Thermal Oxidization | Customized: | Available |
Service: | Design, Supply Of Equipment With Technical Supervision At Site | Emission: | Friendly & Minimized Emission Under Standard And Regulation |
High Light: | industrial waste incinerator,rto thermal oxidizer |

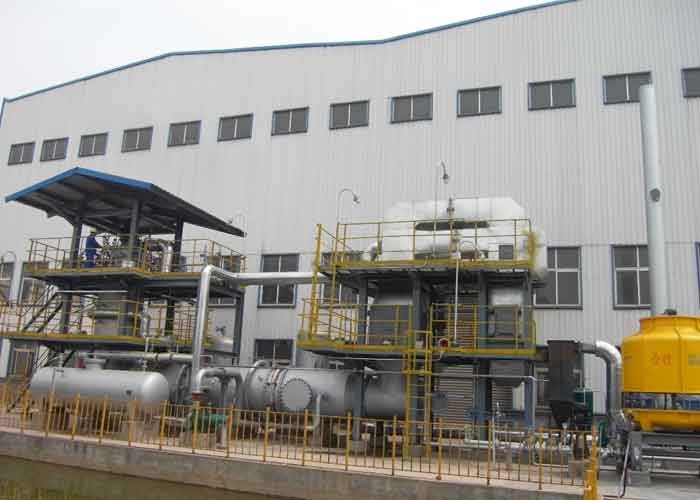

Waste Gas Thermal Oxidizer (Incinerator)
Capacity: 0~500,000Nm3/h
Method of treatment: Thermal Oxidization
Applications: Incineration treatment of various types of organic waste gas and VOCs exhausted from chemical plants, refineries and VOCs.
Summary:
Waste Gas Thermal Oxidizer is to handle the organic compositions contained in waste gas by means of thermal oxidization, which converts the compositions of C and H contained in the organics into the pollution-free compositions: CO2 and H2O. The temperature of incineration shall be controlled between 800-1100℃. The supply of fuel and combustion air subject to staging control so as to control the NOx discharged.
For waste gas of diversified compositions and heat values, the treatment processes of the waste gas thermal oxidizer are of a certain difference, but in general, the system usually mainly consists of waste gas combustion system and waste heat recovery system.
