|Features:||Sufficient Oxidation, Long Service Life||Function:||Effectively Mix & Atomize The Pulverized Coal For High Temperature/pressure Redox Reaction|
|Application:||For Top-injected Pulverized Coal Gasifiers||Material:||High Temperature Resistant Alloy Steel|
|Service:||Design, Engineering, Manufacturing, Supply With Technical Service||Arrangement:||Top-mounted|
|Structure:||Integration Of Ignition Burner, Start-up Burner And Process Burner|
pulverised coal burner,
coal powder burner

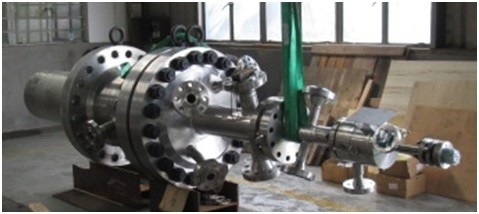

Top Mounted Pulverized Coal Burner Alloy Steel For Coal Chemical Industry
The integrated ignition, start-up and coal burner (called as Combined Pulverized Coal Burner as well) developed by SMDERI serves as the ignition burner, start-up burner and process burner at the same time and has flame detection, video monitoring and temperature measuring functions. It mainly used to perform thorough mixing and atomization of oxygen/steam mixture and pulverized coal delivered by gas at the burner exit and cause strong redox reaction in the combustion chamber with a temperature of 1450-1650℃ and a pressure 4.5Mpa so as to produce syngas mainly containing H2 and CO.
Currently over 30 such burners have been installed and operated in high temperature, high pressure and rich oxygen environment for long time. The burner head is proved to have extraordinary resistance to high temperature, oxidation and wear and can satisfy the requirement for the pulverized power entrained flow bed gasification process.
* The integrated burner is made up of the integrated ignition burner and the main burner.
* Away from center to the outer circumference, the channels of integrated ignition burner are arranged in the following order: central nitrogen purge channel (flame observation and detection), ignition fuel gas channel, ignition oxygen channel and inlet/outlet cooling water channel. The high energy ignition gun of special design is capable of steady ignition and can be used as pilot when the gasifier receives coal and starts operation.
* With the integrated ignition burner mounted in the center, the channels of main burner away from center are respectively the ignition burner, main oxygen channel (mounting clearance between the ignition burner and the main burner), the pulverized coal channel and the cooling water channel. Matching the chamber configuration of the gasifier, the burner ultimately delivers such media as pulverized coal, oxygen, steam into the high temperature and high pressure gasifier in the atomized status desired by the gasification process so as to produce syngas.
Components and parameters
|5||Coal particles into gasifier||＜90μm|
Ignition burner: 6 months
Main burner: 2 years
|7||Successful ignition rate||＞98%|
Three-in-one online flame detection system
Flame detector+ video signals+ temperature signals
|9||Fuel gas||LPG during ignition and syngas during normal operation|
|10||Carbon conversion ratio||＞98%|
|11||Useful component (CO+H2)||90%-94%|
1)Reliable ignition and integrated with ignition, start-up and process burner
2)With flame detection, video signals and temperature measuring functions
3)High adaptability to different coal types with different ash contents, high carbon conversion ratio and high ratio of effective components in the syngas
4)For ignition burner, the continuous service life can be as long as 6 months and for main burner, it can be up to 2 years.
5)Only two cooling waters channels are required.
6)High pressure pure oxygen combustion test facilities and outstanding R&D team.
|1||Shenhua Ningxia Coal Industry Co. Ltd. Olefin Company||2000t/d||5 sets||2013|
|2||Shenhua Ningxia Coal Industry Coal To Liquid Company||2200t/d||
|3||Inner Mongolia Huiteng Energy & Chemical Industry Co. Ltd. glycol project||2200t/d||3 sets||2016|
