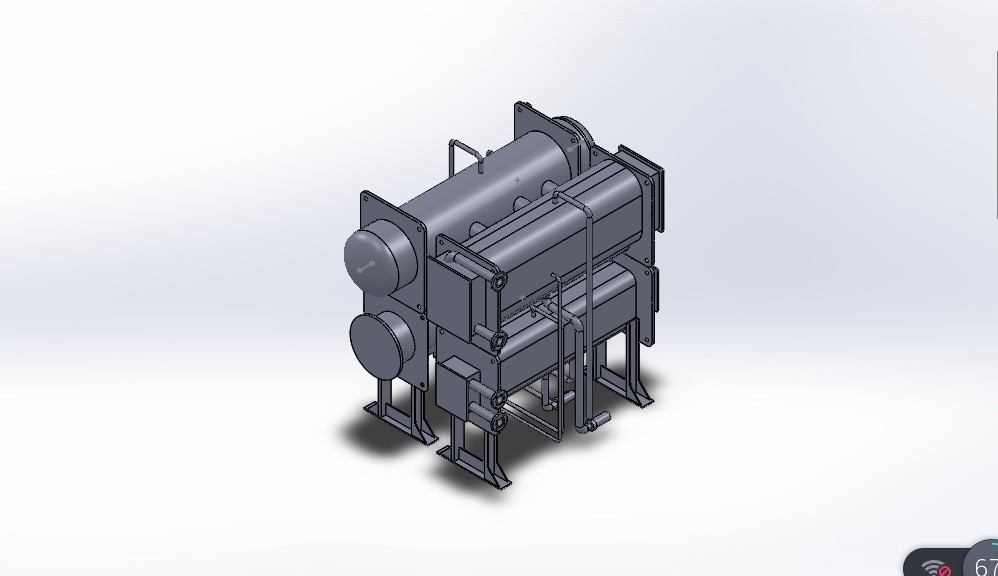

Temperature Boosting Absorption Heat Pump Low Pressure Steam / Hot Water Driving Energy

Temperature Boosting Absorption Heat Pump Low Pressure Steam / Hot Water Driving Energy

Temperature Boosting Absorption Heat Pump Low Pressure Steam / Hot Water Driving Energy

Product Details:

Place of Origin: China
Brand Name: QIYAO
Certification: ISO, ASME

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Customized Product, Quoted Case By Case
Packaging Details: Seaworthy packing
Delivery Time: 3~4 months
Contact Now
Detailed Product Description
Features: Little Energy Consumption, More Thermal Energy Obtained Material: Carbon Steel
Packing: Seaworth Packing Service: Design, Engineering, Procurement And Construction
Function: To Convert Low-potential Heat Into High-potential Heat
High Light:

absorption heat transformer

,

gas absorption heat pump

Temperature Boosting Absorption Heat Pump Low Pressure Steam / Hot Water Driving Energy



Absorption Heat Pump


Absorption Heat Pump is a heating unit powered by heat energy (steam, hot water or directly-combusted natural gas) to transfer low-potential heat energy to high-potential heat energy, with LiBr as an absorbent and water as a coolant, which is used for home heating or process heating. Absorption Heat Pump comprises primarily generator, condenser, evaporator, absorber, heat exchanger, automatic gas pump system, vacuum pump and canned pump. Compared with the compression heat pump, Absorption Heat Pump has the advantages of a larger capacity, lower operation cost, higher reliability, etc.


TAH --- Temperature-boosting Absorption Heat Pump
Inlet waste heat: Exhaust heat in temperature of 15-70 ℃

Driving energy: Low pressure steam, hot water, oil & gas, flue gas in temperature of

over 250 ℃
Outlet hot water: 40 ℃ higher than inlet waste heat, less than 100 ℃
Heating capacity: 1,000 - 60,000 KW (3.5 times the driving energy consumption).





Temperature Boosting Absorption Heat Pump Low Pressure Steam / Hot Water Driving Energy

Temperature Boosting Absorption Heat Pump Low Pressure Steam / Hot Water Driving Energy







SAH --- Self-driven Absorption Heat Pump
Inlet waste heat:
Exhaust heat in temperature of over 70℃
Driving energy: None
Outlet hot water or steam: 25 - 50 ℃ higher than inlet waste heat, less than 175 ℃
Heating capacity: 500 - 10,000 KW.

Applications: As a heating unit for home heating or production process heating.

Available Service: Design, engineering, fabrication
EP / EPC contractor.



Temperature Boosting Absorption Heat Pump Low Pressure Steam / Hot Water Driving Energy

Temperature Boosting Absorption Heat Pump Low Pressure Steam / Hot Water Driving Energy
