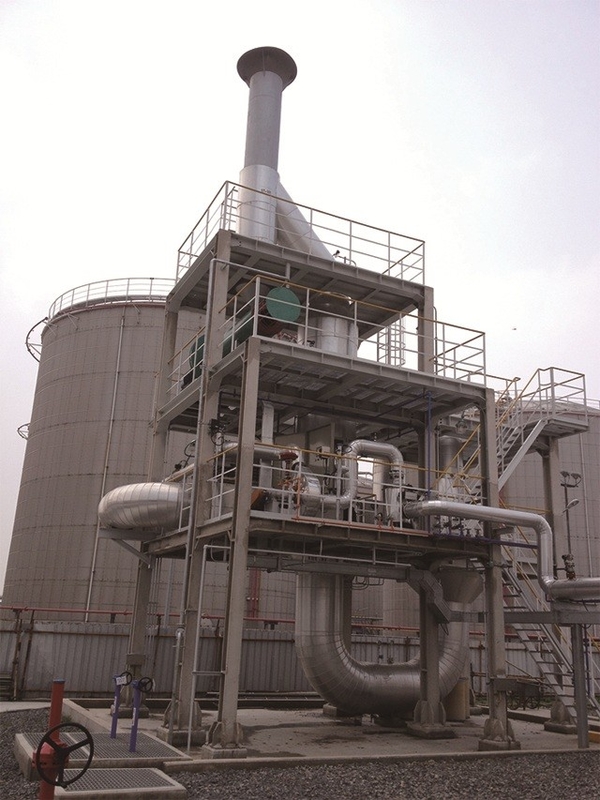

S S Waste Water Thermal Oxidizer Design , Liquid Waste Incinerator

S S Waste Water Thermal Oxidizer Design , Liquid Waste Incinerator

S S Waste Water Thermal Oxidizer Design , Liquid Waste Incinerator

Product Details:

Place of Origin: China
Brand Name: QIYAO
Certification: ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Customized Product, Quoted Case By Case
Packaging Details: Seaworthy packing
Delivery Time: 30-48 weeks
Payment Terms: T/T, L/C
Supply Ability: 20 sets per year
Contact Now
Detailed Product Description
Material: Stainless Steel, Carbon Steel Function: Treatment Of Toxic, Harmful And Dangerous Waste Liquid
Arrangement: Horizontal Or Vertical Customised: Available
Standard / Code: GB, API, Available Service: Design, Supply, Supervision On Installation, Commissioning & Training
High Light:

industrial waste incinerator

,

rto thermal oxidizer

S S Waste Water Thermal Oxidizer Design , Liquid Waste Incinerator



SMDERI have been involved in research & development on decontamination of toxic & harmful waste gas and liquid over decades of years. Over 200 sets of various types of thermal oxidizers have been completed on EP / EPC basis.



Types of Thermal Oxidizer:

  • Thermal Oxidizer for waste gas & liquid (TO)
  • Regenerative Thermal Oxidizer (RTO)
  • Catlystic Thermal Oxidizer (CTO)







Waste Water Thermal Oxidizer (Incinerator)



Capacity: 30,000kg/h

Method of treatment: Thermal Oxidization

Applications: Treatment of various types of waste water generated from chemical plants, refineries and other facilities.



Summary:

Waste Water Thermal Oxidizer is to handle the organic compositions contained in waste liquid by means of thermal oxidization, which converts the compositions of C and H contained in the organics into the pollution-free compositions: CO2 and H2O. The temperature of incineration shall be controlled between 950-1100℃. A waste heat boiler is arranged for the incinerated flue gas to recover steam. In order to save fuel consumption, the air to be combusted is usually preheated up to 300-400℃.

The waste water is atomized and introduced into the combustion chamber, where the liquid drop is atomized between 50μ~100μ. Based on the characteristic of waste liquid, the compressed air atomization, steam atomization or mechanical atomization shall be selected.

Due to the low heat value of waste water, the arrangement of chamber, waste water spray gun and fuel spray nozzle shall be specially considered for large stream of waste water thermal oxidizer to make sure that the sprayed waste water is promptly vaporized and combusted inside the chamber and the good temperature field is established.

According to different heat value and composition of waste water, the targeted measures are applied to ensure the standard emission of NOx, by means of waste water graded, air graded and SNCR or SCR denitrification device set up.



Advantage:

  1. High efficiency of treatment: Up to 99.99% on decomposition ratio of waste gas treatment;
  2. Customized process: Always most suitable solution to be provided for clients;
  3. Low NOx combustion technology: To ensure standard emission;
  4. High level modularized design;
  5. Flexible heat recovery method: To produce steam, preheat waste gas, conductive oil, etc.;
  6. Advanced design software: To simulate temperature field and velocity field of the chamber by means of simulation design.





S S Waste Water Thermal Oxidizer Design , Liquid Waste Incinerator

S S Waste Water Thermal Oxidizer Design , Liquid Waste Incinerator

S S Waste Water Thermal Oxidizer Design , Liquid Waste Incinerator
