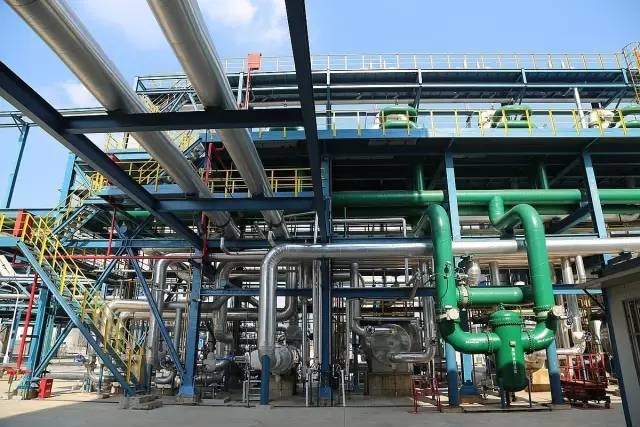

ORC System Organic Rankine Cycle Power Generation With Air / Water Cooling

ORC System Organic Rankine Cycle Power Generation With Air / Water Cooling

ORC System Organic Rankine Cycle Power Generation With Air / Water Cooling

Product Details:

Place of Origin: China
Brand Name: QIYAO
Certification: ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD1800 - 2200 PER KW
Packaging Details: seaworthy packing
Delivery Time: 120 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per yeat
Contact Now
Detailed Product Description
Material: Stainless Steel Applications: Cement Plant, Petrochemical Plant, Etc.
Rated Power: 1 MW - 10 MW Skid Equipment: Available
Customized: Available Condensation: Air Cooling Or Water Cooling
High Light:

rankine cycle power plant

,

orc organic rankine cycle

Principle of ORC system

  • The low boiling point organic working fluid makes heat exchange with the heat source through evaporator, then absorbs heat and is evaporated to high temperature & high pressure steam.
  • The high temperature & high pressure steam drives the turbine expander & generator set for electric power generation.
  • The temperature and pressure of organic steam is decreased after work.
  • The organic steam with low temperature & pressure flows into the cooling system to be condensed to fluid.
  • The organic working fluid is pressurized by the fluid pump for next cycle.

ORC system waste heat recovery from hot water



In many industries, a lot of waste hot water will be generated from the processes. Part of hot water can be used for other processes which need to be warmed or heated. However there is still a tremendous amount of hot water to be discharged directly.

An ORC system are normally arranged to recover the waste heat containing in hot water to generate electric power, which contributes to energy-saving and environmental protection.



Applicable temperature of hot water: 90°C-150°C

Applicable flow rate of hot water: 300t/h and above

Rated power capacity: 0.5MW – 10MW @ORC unit



Sketch – Process Flow:

ORC System Organic Rankine Cycle Power Generation With Air / Water Cooling
