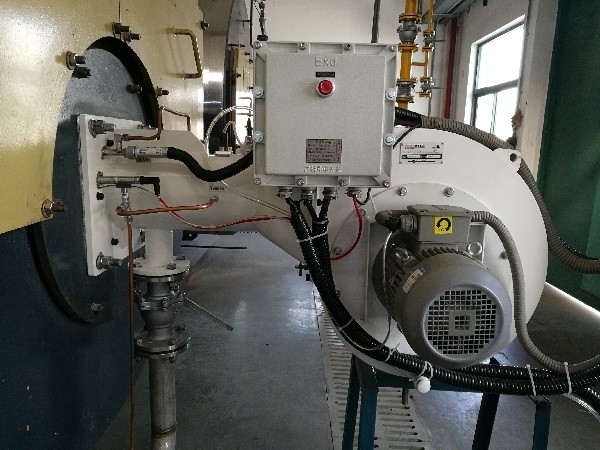

Metallic Mat Low NOx Burners For Gas Fired Boilers BMG030

Metallic Mat Low NOx Burners For Gas Fired Boilers BMG030

Metallic Mat Low NOx Burners For Gas Fired Boilers BMG030

Product Details:

Place of Origin: China
Brand Name: QIYAO
Model Number: BMG030

Payment & Shipping Terms:

Minimum Order Quantity: 4 sets
Price: USD10,000 - USD100,000 per set
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Material: Stainless Steel Design: Intrinsic Safety Design Philosophy
Applications: Industrial Boilers, Heaters And Heat Conduction Oil Furnace, Etc. NOx Emission: Lower Than 30mg/Nm3
Burner Power: 3 MW Safety: No Explosion
High Light:

industrial boiler burners


dry low nox burner

After 8 years of effort, SMDERI has established an advanced and modernized center for R&D, manufacturing, modification and maintenance of coal gasification burners, owned the large scale multifunctional testing platforms to conduct high pressure, pure oxygen combustion and low NOx combustion. SMDERI has a professional & experienced technical team with doctors, masters, senior engineers and senior technicians. The center has been qualified with certificates of ISO9000, ISO14000 and ISO18000.

Engineering department: Provides optimized and reliable solutions based on working conditions and applications.


Manufacturing department: Provides high efficient burners with multi-specification in particular based on its full set of advanced production line.

Service team: Provides professional and excellent after-sale service.

Applicability: Applicable to the complicated & severe working conditions like high temperature, high pressure

and corrosive medium, etc.

Environmental protection: NOx emission ≤ 30mg/Nm3


Summary of BMG series burner:

□ QIYAO-BMG series metallic mat gas burners are of the ability of ultralow nitrogen emission. The NOx

   discharged is less than 30mg/Nm3.

□ The design philosophy of intrinsic safety is applied, so this type of burner will fundamentally ensure

   long term, stable and safety operation.

□ Applications: for industrial boilers, heaters and heat conduction oil furnace, etc., which have to meet the

    demand of low NOx emission and use the civil gas, natural gas as fuel.

□ Single capacity is up to 4MW.




QIYAO – BMG Series Metallic Mat Gas Burner
Model  BMG010 BMG020 BMG030
Capacity of burner  MW 1 2 3
Capacity of applicable furnace  t/h ~1.25 ~2.5 ~3.6
Consumption of fuel gas (on NG)  Nm3/h ~100 ~200 ~300
Consumption of assist air  Nm3/h ~1500 ~3000 ~4500
Inlet pressure of fuel gas  kPa 20
Power of blower  kW ~2.2 ~4.0 ~7.5

NOx pollutant discharge (@3.5vol.%O2)

mg/Nm3 <30
ppm <15
Regulation method for air/fuel ratio

Differential pressure proportional regulation or electronic proportional regulation

Regulation ratio of burner   1:5
Other related information

Shall be inquired in details based on site scenario.

The above parameters are for reference only.
