|Place of Origin:||China|
|Minimum Order Quantity:||4 sets|
|Price:||USD10,000 - USD100,000 per set|
|Packaging Details:||seaworthy packing|
|Delivery Time:||45 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||100 sets per month|
|Material:||Stainless Steel||Design:||Intrinsic Safety Design Philosophy|
|Applications:||Industrial Boilers, Heaters And Heat Conduction Oil Furnace, Etc.||NOx Emission:||Lower Than 30mg/Nm3|
|Burner Power:||2 MW|
industrial boiler burners,
dry low nox burner

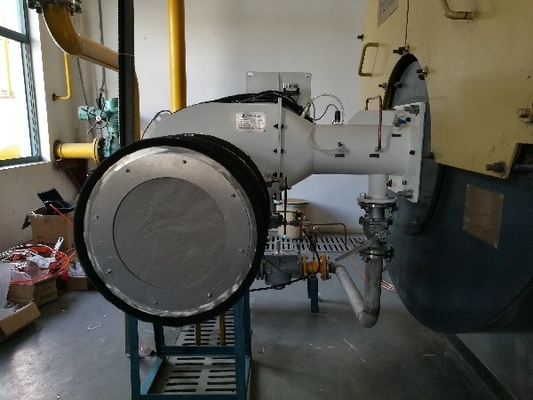

QIYAO-BMG Series Metallic Mat Gas Burner with low NOx emission made in China
After 8 years of effort, SMDERI has established an advanced and modernized center for R&D, manufacturing, modification and maintenance of coal gasification burners, owned the large scale multifunctional testing platforms to conduct high pressure, pure oxygen combustion and low NOx combustion. SMDERI has a professional & experienced technical team with doctors, masters, senior engineers and senior technicians. The center has been qualified with certificates of ISO9000, ISO14000 and ISO18000.
Professional & Excellent Service:
- Provides optimized and reliable solutions based on working conditions and applications.
- Provides high efficient burners with multi-specification in particular based on its full set of advanced production line.
- Provides professional and excellent after-sale service.

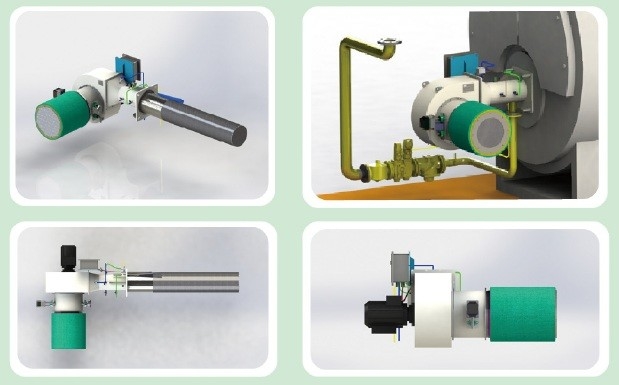

Summary of BMG series gas burner:
□ QIYAO-BMG series metallic mat gas burners are of the ability of ultralow nitrogen emission. The NOx
discharged is less than 30mg/Nm3.
□ The design philosophy of intrinsic safety is applied, so this type of burner will fundamentally ensure
long term, stable and safety operation.
□ Applications: for industrial boilers, heaters and heat conduction oil furnace, etc., which have to meet the
demand of low NOx emission and use the civil gas, natural gas as fuel.
□ Single capacity is up to 4MW.
◇ Combustion way: Fully premixed fuel gas combustion way;
◇ Open fire ignition of lance: Reduce instantaneous peak pressure of ignition;
◇ Dual flame detection: Monitor operation status of burner;
◇ Structure of opposite open type & equal Y-position vent valve: More reasonable air regulation curve;
◇ Structure of uniform air distribution: Optimized surface combustion load of fiber combustor and ability of safety operation so that longer service life of the burning tip will be achieved;
◇ Self-purge of flame detector and ignition lance: The service life of main components is maximally guaranteed;
◇ The extension of self-checking module for burner's operation status
|QIYAO – BMG Series Metallic Mat Gas Burner|
|Capacity of burner||MW||1||2||3|
|Capacity of applicable furnace||t/h||~1.25||~2.5||~3.6|
|Consumption of fuel gas (on NG)||Nm3/h||~100||~200||~300|
|Consumption of assist air||Nm3/h||~1500||~3000||~4500|
|Inlet pressure of fuel gas||kPa||20|
|Power of blower||kW||~2.2||~4.0||~7.5|
NOx pollutant discharge (@3.5vol.%O2)
|Regulation method for air/fuel ratio||
Differential pressure proportional regulation or electronic proportional regulation
|Regulation ratio of burner||1:5|
|Other related information||
Shall be inquired in details based on site scenario.
The above parameters are for reference only.
