High Power ORC Organic Rankine Cycle For Oil Refinery ISO Standard

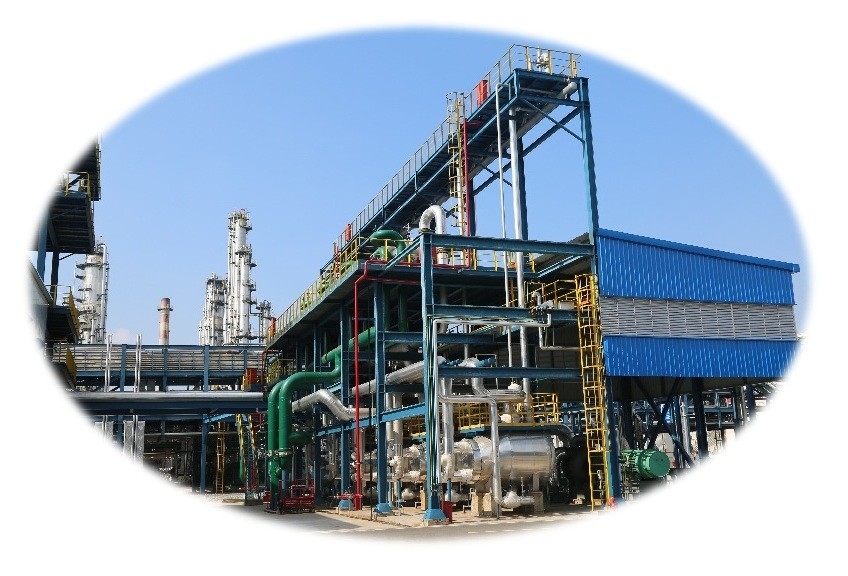

High Power ORC Organic Rankine Cycle For Oil Refinery ISO Standard

High Power ORC Organic Rankine Cycle For Oil Refinery ISO Standard

Product Details:

Place of Origin: China
Brand Name: QIYAO
Certification: ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD1800 - 2200 PER KW
Packaging Details: seaworthy packing
Delivery Time: 120 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per yeat
Contact Now
Detailed Product Description
Material: Stainless Steel Applications: Cement Plant, Petrochemical Plant, Etc.
Rated Power: 1 MW - 10 MW Skid Equipment: Available
Customized: Available Condensation: Air Cooling Or Water Cooling
High Light:

rankine cycle power plant

,

orc organic rankine cycle

Principle of ORC system

  • The low boiling point organic working fluid makes heat exchange with the heat source through evaporator, then absorbs heat and is evaporated to high temperature & high pressure steam.
  • The high temperature & high pressure steam drives the turbine expander & generator set for electric power generation.
  • The temperature and pressure of organic steam is decreased after work.
  • The organic steam with low temperature & pressure flows into the cooling system to be condensed to fluid.
  • The organic working fluid is pressurized by the fluid pump for next cycle.







ORC system to be used for Oil Refinery

  • Oil refining processes take place at high temperatures and the products (diesel, gasoline, kerosene) flow out at temperature between 150°C and 250°C. These products must be cooled down before storage.
  • In production processes of an oil refining or a petrochemical plant, thermal streams from process complexes take place at medium-low temperature, which need to be cooled down before next process.

In both cases, the thermal streams can be directed into an ORC system with proper working fluid for electric power generation.





ORC system - Process Flow



High Power ORC Organic Rankine Cycle For Oil Refinery ISO Standard



Contact Details
Shanghai Marine Diesel Engine Research Institute

Contact Person: Mrs. Tan Ling

Tel: 86-21-51151156

Fax: 86-21-51711742
