|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Price:||USD1800 - 2200 PER KW|
|Packaging Details:||seaworthy packing|
|Delivery Time:||120 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||10 sets per yeat|
|Material:||Stainless Steel||Applications:||Cement Plant, Petrochemical Plant, Etc.|
|Rated Power:||1 MW - 10 MW||Skid Equipment:||Available|
|Customized:||Available||Condensation:||Air Cooling Or Water Cooling|
rankine cycle power plant,
orc organic rankine cycle
Principle of ORC system

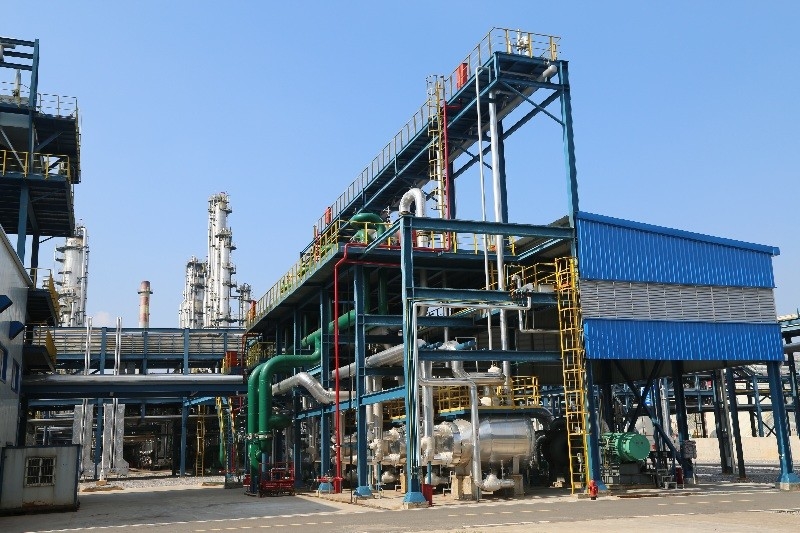

ORC system to be used for geothermal power plant
In most cases, the geothermal stream is introduced to the steam-water separator where the steam and the hot water are separated. The steam will be directly introduced to the steam turbine generator for electric power generation, while the hot water will be introduced into ORC system.
The geothermal hot water will be normally at the temperature between 90°C-150°C, which can be used as the heat source of ORC system for electric power generation.
The application of ORC system will greatly improve the whole efficiency of geothermal power plant and make more effective use of geothermal resources.
Rated Power Capacity of ORC system: up to 10 MW @single unit
A Typical Process Flow Sketch of Geothermal Power Plant
