Fully Welded Enamel Plate Air Preheater With Excellent Service

Fully Welded Enamel Plate Air Preheater With Excellent Service

    • Fully Welded Enamel Plate Air Preheater With Excellent Service
    • Fully Welded Enamel Plate Air Preheater With Excellent Service
  • Fully Welded Enamel Plate Air Preheater With Excellent Service

    Product Details:

    Place of Origin: China
    Brand Name: QIYAO
    Certification: ISO, ASME

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Customized Product, Quoted Case By Case
    Packaging Details: Seaworthy wooden case
    Delivery Time: 4~8 months after PO
    Payment Terms: T/T, L/C
    Supply Ability: 100 units per month
    Contact Now
    Detailed Product Description
    Material: Enameled Plate Structure: Fully Welded & Enameled Plate Sheets To Be Welded As The Core Component Of Air Preheater
    Customised: Available Application: Oil & Gas, Refineries, Petrochemical Industries, Etc.
    Packing: Seaworthy Wooden Case After-sale Service: Available
    High Light:

    plate type air preheater


    combustion air preheater

    Fully Welded Enamel Plate Air Preheater With Excellent Service

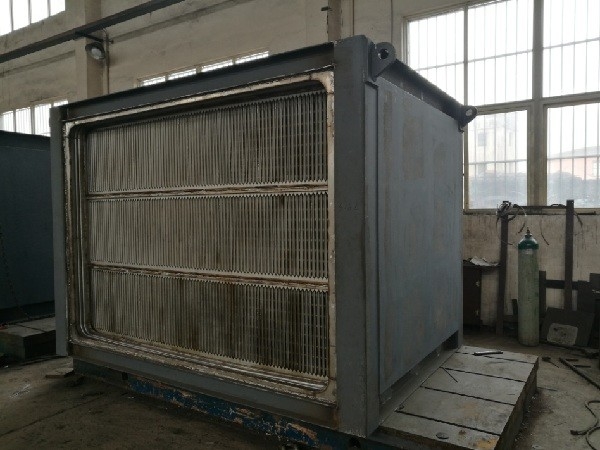

    Enamel Plate Preheater is a kind of gas-gas heat exchanger and is mainly featured by that plate exposed to heat transfer medium are all enameled, so that it can be applied in cases with potential hazard of low temperature corrosion where the plate preheaters constructed with stainless steel or other material are not applicable. As a new type of air preheater integrated with high efficiency heat transfer performance of plate air preheater and ultra corrosion resistance performance of enameled surface, it is ideal for high efficient waste heat recovery of low temperature flue gas. It has a wide prospect in the fields of energy-saving upgrade of boilers, heaters and the improvement of thermal efficiency of furnaces. It will make a great contribution to the petrochemical industry on energy-saving & environmental protection.


    Enameled Plate Air Preheater can be widely applied in refining, chemical, power and metallurgy industries, etc. It excels other similar plate air preheater in the comprehensive economic performance and service life and is ideal for the application and/or revamp of large scale air preheaters, especially applicable for the waste heat recovery system for low temperature(﹤200℃) corrosive flue gas.


    Work Principle / Flow

    For the petrochemical industry: Arranged in the waste heat recovery system of heater, the Enamel plate air preheater receives the hot flue gas generated from the heater to pre-heat the air before it is delivered to the stainless steel plate preheater and at the same time, it cools the flue gas down to below 100℃ before it is discharged from the chimney.



    Item Unit Parameter
    Model No.
    Design sustained temperature of equipment
    Working pressure Kpa
    Design pressure Kpa
    Test pressure Kpa
    Flow rate of media Nm3/h
    Flow rate of flue gas Nm3/h
    Design inlet temperature of media
    Design outlet temperature of media
    Inlet temperature of flue gas
    Outlet temperature of flue gas
    Flue gas side resistance loss Pa
    Media side resistance loss Pa
    Design capacity of heat exchange Kw
    Material of plate sheet   Enamel plate sheet / 1mm
    Material of shell   Q235B

    1. Excellent corrosion resistance and extended service life

    The enameled channel outside the plate tube (flue gas side) of the air preheater is produced with

    special enamel process assuring no pinholes on the enameled surface and provides excellent

    corrosion resistance.Fully Welded Enamel Plate Air Preheater With Excellent Service
    2. High efficient heat exchange and compact size

    The plate sheet is stamped with multiple dimples optimized by numerical simulation and can establish turbulence even at low Reynolds number. Therefore, the heat transfer performance is greatly Fully Welded Enamel Plate Air Preheater With Excellent Serviceimproved and the size of equipment is reduced.
    3. Lower flow resistance

    The specific plate type of flow channel matches up the pressure drop at gas side and air side perfectly other than increasing heat transfer coefficient. The of enamel plate sheet has a smooth surface enabling little soot to accumulate and provides straight channel, more flow area and shorter flow distance, which means less resistance for the gas and air flow inside and outside the plate tube.
    4. Easy cleaning

    The enamel plate sheet accumulates little soot and resists temperature shock, so that it allows online cleaning with water at ambient temperature.
    5. Tightly sealed with no leakage

    In conventional plate air preheaters, such as ceramic plate type & cast iron plate type, etc., the plate sheets are bolted and sealed with gaskets or sealing strips. During operation, the sealing material is apt to deform owing to the heat and causes gas or air leakage. For the air preheater developed by SMDERI, the plate sheets are welded together and sealed at both ends by sealing material, which will isolate the flue gas and air completely to ensure no leakage.

    6. Modularized structure

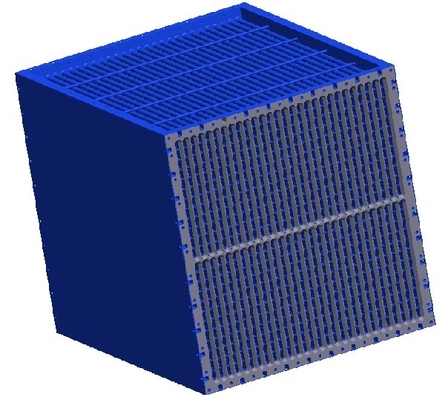

    All components of the enamel plate air preheater are pre-assembled as modules in workshop, which ensures good quality and convenient transportation and easy installation on site. To facilitate the selection, maintenance and service of users, the plate tubes or even plate air preheaters can be assembled like block-building as desired based on different thermal load and flue gas (air) flow rate.
    7. Reliable quality assurance

    The plate sheets are welded by automatic production line and argon-arc welding and then are enameled twice. Then the enameled plate sheets undergo temperature shock resistance test, high pressure test and corrosive resistance test to assure outstanding performance of enameled plates and a service life of over 8 years.
    Typical project
    Waste heat recovery system revamp project for feeding heater of jet fuel hydrogenation plant at Sinopec Maoming Corp.

    S/No. Item Unit Parameter
      Model No. QYDYD-16-143-1560H
    1 Design temperature 350
    2 Design pressure Kpa 5
    3 Test pressure Kpa 10
    4 Air flow rate Nm3/h 13588
    5 Flue gas flow rate Nm3/h 14150
    6 Air inlet temperature 20
    7 Air outlet temperature 260
    8 Flue gas inlet temperature 310
    9 Flue gas outlet temperature 100
    10 Design capacity of heat exchange Kw 1239
    11 Plate sheet thickness mm 1.0
    12 Plate sheet material   Enameled steel plate
    13 Shell material   Q235B

    Fully Welded Enamel Plate Air Preheater With Excellent Service
