Chemical Plants Waste Liquid Thermal Oxidizer With Professional Design

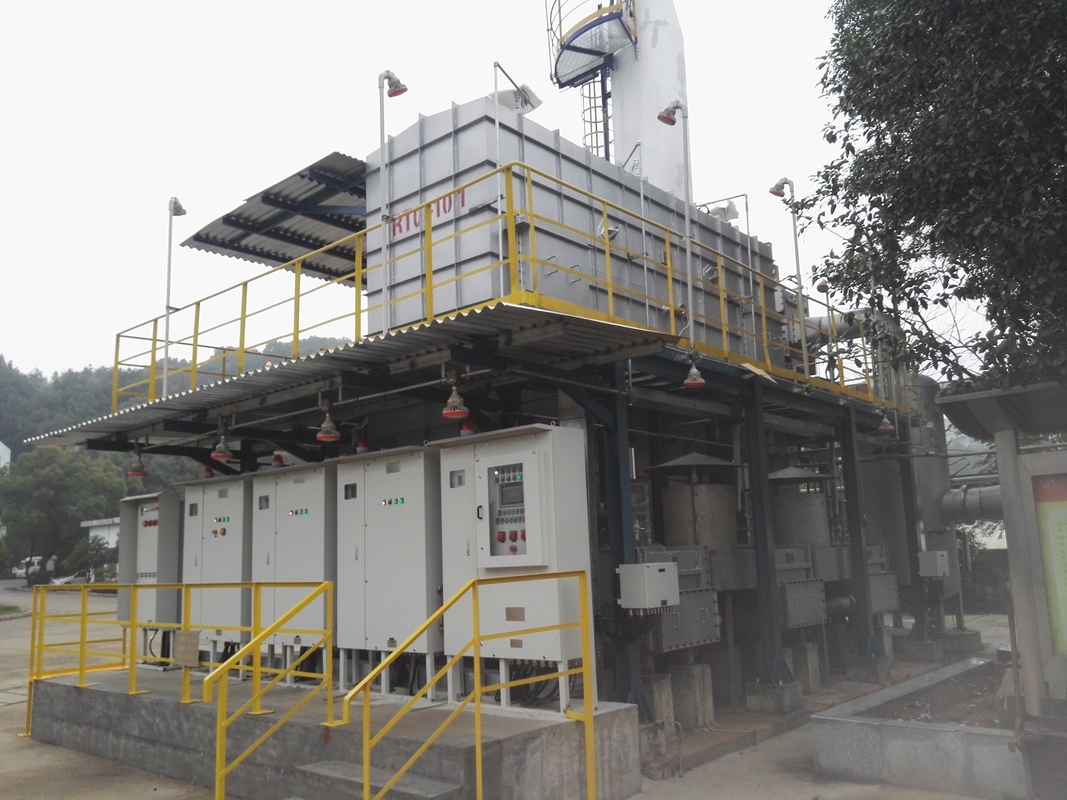

Waste Liquid Thermal Oxidizer (Incinerator)

Capacity: 0~10,000kg/h

Method of treatment: Thermal Oxidization

Applications: Treatment of various types of high concentrated & organic waste liquid generated from chemical plants, refineries and other facilities.

Summary:

Waste Liquid Thermal Oxidizer is to handle the organic compositions contained in waste liquid by means of thermal oxidization, which converts the compositions of C and H contained in the organics into the pollution-free compositions: CO₂ and H₂O. The temperature of incineration shall be controlled over 1100℃. A waste heat boiler is arranged for the incinerated flue gas to recover steam.

The waste liquid is atomized and introduced into the combustion chamber, where the liquid drop is atomized between 50μ~100μ. Based on the characteristic of waste liquid, the compressed air atomization, steam atomization or mechanical atomization shall be selected.

According to different heat value and compositions of waste liquid, the targeted measures are applied to ensure the standard emission of NOx, by means of waste water graded, air graded and SNCR or SCR denitrification device and etc.

Advantage:

1. High efficiency of treatment: Up to 99.99% on decomposition ratio of waste gas treatment;
2. Customized process: Always most suitable solution to be provided for clients;
3. Low NOx combustion technology: To ensure standard emission;
4. High level modularized design;
5. Flexible heat recovery method: To produce steam, preheat waste gas, conductive oil, etc.;
6. Advanced design software: To simulate temperature field and velocity field of the chamber by means of simulation design.
