| Place of Origin: | China |
| Brand Name: | QIYAO |
| Model Number: | BMG |
| Minimum Order Quantity: | 4 sets |
|---|---|
| Price: | USD10,000 - USD100,000 per set |
| Packaging Details: | seaworthy packing |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets per month |
| Material: | Stainless Steel | Design: | Intrinsic Safety Design Philosophy |
|---|---|---|---|
| Applications: | Industrial Boilers, Heaters And Heat Conduction Oil Furnace, Etc. | NOx Emission: | Lower Than 30mg/Nm3 |
| Burner Power: | 1 MW | Delivery: | 3 Months After Contract |
| High Light: | industrial boiler burners,dry low nox burner |
||

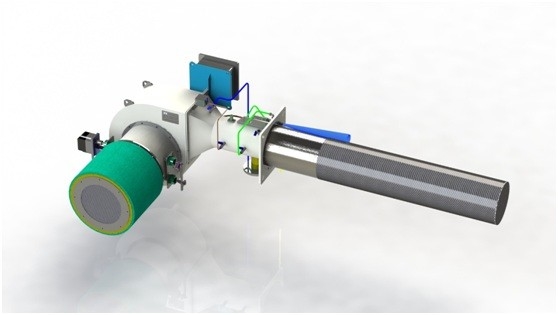

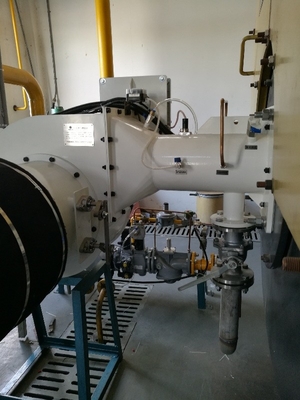

QIYAO-BMG Series Metallic Mat Gas Burner with extra low NOx emission
Description
□ QIYAO-BMG series metallic mat gas burners are of the ability of ultralow nitrogen emission. The NOx
discharged is less than 30mg/Nm3.
□ The design philosophy of intrinsic safety is applied, so this type of burner will fundamentally ensure
long term, stable and safety operation.
□ Applications: for industrial boilers, heaters and heat conduction oil furnace, etc., which have to meet the
demand of low NOx emission and use the civil gas, natural gas as fuel.
□ Single capacity is up to 4MW.
| QIYAO – BMG Series Metallic Mat Gas Burner | ||||
| Model | BMG010 | BMG020 | BMG030 | |
| Capacity of burner | MW | 1 | 2 | 3 |
| Capacity of applicable furnace | t/h | ~1.25 | ~2.5 | ~3.6 |
| Consumption of fuel gas (on NG) | Nm3/h | ~100 | ~200 | ~300 |
| Consumption of assist air | Nm3/h | ~1500 | ~3000 | ~4500 |
| Inlet pressure of fuel gas | kPa | 20 | ||
| Power of blower | kW | ~2.2 | ~4.0 | ~7.5 |
|
NOx pollutant discharge (@3.5vol.%O2) |
mg/Nm3 | <30 | ||
| ppm | <15 | |||
| Regulation method for air/fuel ratio |
Differential pressure proportional regulation or electronic proportional regulation |
|||
| Regulation ratio of burner | 1:5 | |||
| Other related information |
Shall be inquired in details based on site scenario. The above parameters are for reference only. |
|||
After 8 years of effort, SMDERI has established an advanced and modernized center for R&D, manufacturing, modification and maintenance of coal gasification burners, owned the large scale multifunctional testing platforms to conduct high pressure, pure oxygen combustion and low NOx combustion. SMDERI has a professional & experienced technical team with doctors, masters, senior engineers and senior technicians. The center has been qualified with certificates of ISO9000, ISO14000 and ISO18000.
Engineering department: Provides optimized and reliable solutions based on working conditions and applications.
Manufacturing department: Provides high efficient burners with multi-specification in particular based on its full set of advanced production line.
Service team: Provides professional and excellent after-sale service.
Applicability: Applicable to the complicated & severe working conditions like high temperature, high pressure
and corrosive medium, etc.
Environmental protection: NOx emission ≤ 30mg/Nm3
