High Efficient Plate And Shell Heat Exchanger For Oil & Gas / Refinery

High Efficient Plate And Shell Heat Exchanger For Oil & Gas / Refinery

    • High Efficient Plate And Shell Heat Exchanger For Oil & Gas / Refinery
    • High Efficient Plate And Shell Heat Exchanger For Oil & Gas / Refinery
    • High Efficient Plate And Shell Heat Exchanger For Oil & Gas / Refinery
    • High Efficient Plate And Shell Heat Exchanger For Oil & Gas / Refinery
  • High Efficient Plate And Shell Heat Exchanger For Oil & Gas / Refinery

    Product Details:

    Place of Origin: China
    Brand Name: QIYAO
    Certification: ISO, ASME
    Model Number: QYS serirs

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Customized Product, Quoted Case By Case
    Packaging Details: Seaworthy wooden case
    Delivery Time: 30-45 days after L/C or T/T
    Payment Terms: L/C, T/T
    Supply Ability: 100 units per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel, Titanium, SMO, Etc. Structure Of Core: Round & Corrugated Metal Sheets To Be Welded As A Lamella Bundle
    Design Pressure: Up To 20Mpa Temperature Range: -200 C Up To 900 C
    Customised: Yes, Subject To Technical Information Packing: Seaworthy Wooden Case
    After-sale Service: Available Upon Request Application: Oil & Gas, Refinery, Chemical Industries, Etc.
    High Light:

    shell and tube heat exchanger

    ,

    plate shell heat exchanger

    High Efficient Plate And Shell Heat Exchanger For Oil & Gas / Refinery

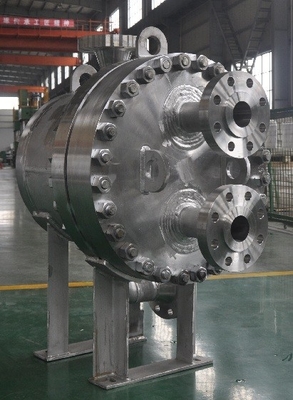

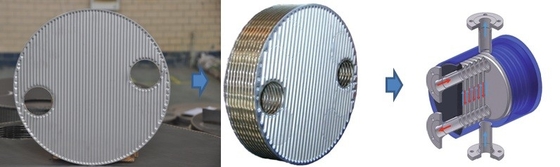

    Plate & Shell Heat Exchanger integrates the advantages of plate heat exchanger and tube & shell heat exchanger as a whole. Owing to such advantages as high efficient heat transfer, close approach temperature, high pressure & heat resistance, compact structure and light weight and etc., it has been widely applied in power, petrochemical, steel, food and pharmaceutical industries and etc. The plate & shell heat exchanger developed by SMDERI is constructed with corrugated sheets similar with plate type heat exchanger. All round sheets are welded to each other into a lamella bundle and then mounted into a shell. There is no gasket between sheets so that it is suitable for high temperature & pressure applications where conventional plate frame heat exchangers can’t be used.





    Work Principle / Flow Process

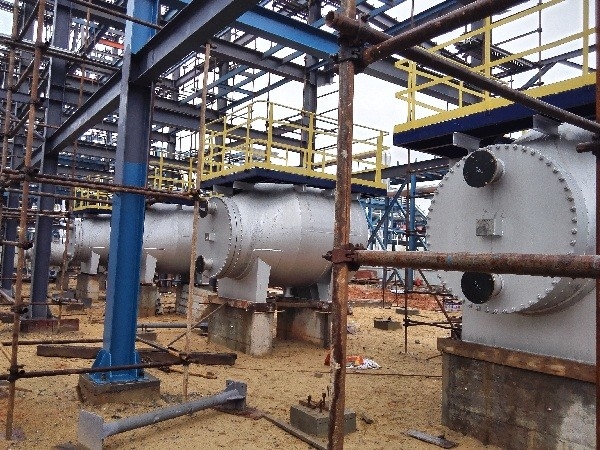

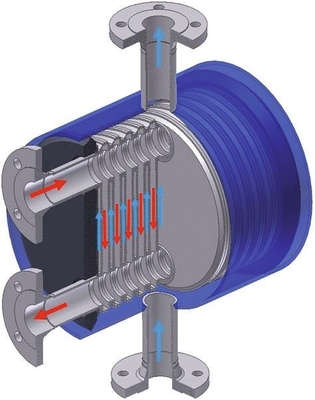

    • Plate & Shell Heat Exchanger consists of a vessel shell and a heat exchanging core mounted into the shell. The core actually is a lamella bundle made by welding multiple layers of round & corrugated metal sheets of 0.8-1.2mm thick together.
    • Neighboring sheets establish narrow and tortuous channels in between and allow the working fluid to flow through.
    • The cold fluid and hot fluid flow through its own channels in order. The cold and hot channels are separated by the sheet naturally, where heat exchange takes place.
    • The structure and work principle of Plate & Shell Heat Exchanger determines that it has the advantages of high heat & pressure resistance, compact structure, small footprint, high heat transfer efficiency, flexible operation, wide application, low heat loss, easy installation & cleaning, etc.



    Advantages

    1. Laser welded lamella bundle as the core of heat exchanger – High heat & pressure resistance;
    2. Cylindrical structure – well-distributed stress, fatigue & heat stress resistance, and applicable for intermittent operation;
    3. Removable core of heat exchange – Easy cleaning & maintenance at shell side;
    4. Pressure vessel as shell – safe and reliable;
    5. Multi flowing channels at both plate side and shell side – Temperature cross is realized;
    6. Streams may be designed to have different flow directions, i.e. the same, opposite or cross directions; ;
    7. Rich manufacturing experience – Safe and reliable products are fabricated;
    8. Sufficient inventory of spare parts – Short lead time is required;
    9. High management efficiency – Low cost of products is resulted.
