|Place of Origin:||China|
|Minimum Order Quantity:||1000 Kw|
|Price:||USD2,000 - USD3,000 per Kw|
|Packaging Details:||seaworthy packing|
|Delivery Time:||24 weeks after L/C or T/T|
|Payment Terms:||L/C, T/T|
|Supply Ability:||10 sets per year|
|Msterial:||Stainless Steel, Carbon Steel, Etc.||Customized:||Available|

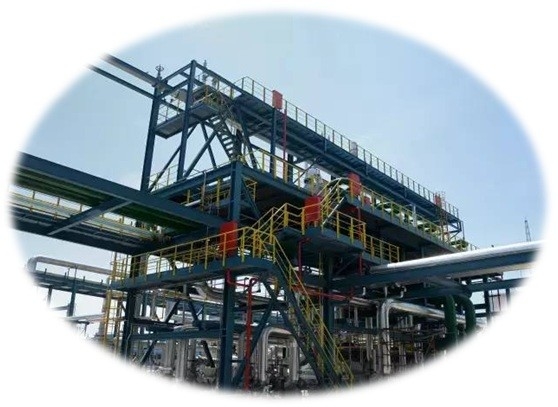

|Applications:||Waste Heat Recovery For Power Generation, Geothermal Power Plant, Etc.||Available Service:||Design, Engineering, Manufacturing/procurement, Supply And Technical Service|
|Single Rated Power Capacity:||500KW - 10MW||Condense Type:||Water, Evaporate Or Air Cooling|
rankine cycle power plant,
orc organic rankine cycle
Based on ORC (Organic Rankine Cycle) technology, SMDERI developed ORC Power Unit which maximally converts the low grade heat in temperature of 80-250 ℃ to electrical energy without extra fuel consumption.
◇ The low boiling point organic working fluid absorbs the heat inside the evaporate system, then is evaporated to high temperature & high pressure steam.
◇ The high temperature & high pressure steam flows into the turbine expander and make it work, then the temperature & pressure of the steam is lowered down after work.
◇ The working turbine expander drives the generator to create electricity.
◇ The steam with low temperature & pressure after works on the turbine expander flows into the cooling system to be condensed to fluid.
◇ The working fluid is pressured by the fluid pump and flows into the evaporate system for next cycle.
Three types of ORC Power Unit for waste heat recovery:
Advantage of QIYAO ORC Power Unit
